automatic aerosol filling machine

The 1 Automatic PU Aerosol Foam Filling Machine is a comprehensive solution for aerosol foam production. This automatic aerosol foam filling line includes a cans arrange machine, a polyurethane white material filler, a polyurethane black filler, a PU valve feeding machine, and a capper, ensuring efficient and seamless operation throughout the filling process.

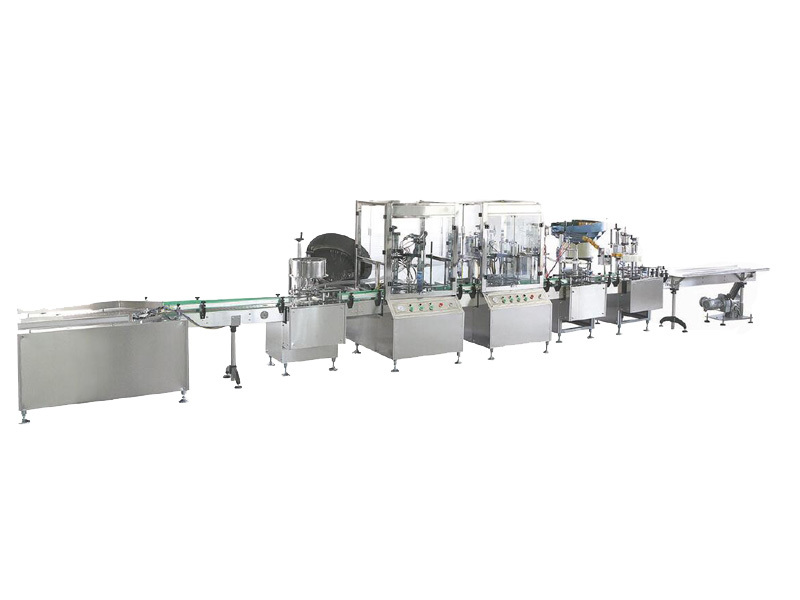

1 automatic PU aerosol foam filling machine

This automatic aerosol foam filling line includes cans arrange machine, Polyurethane white material filler, Polyurethane black filler, PU valve feeding machine, capper, inflator, conveyer belt, explosion proof motor, etc. Automatic PU foam aerosol filling machine can also be equipped with labeler, weighing machine, on-line swing vibration, automatic box filling machine for making the production line more perfect.

Finished product application range

This finished product of automatic PU foam aerosol filler is widely used for sealing and filling window or door side seam, expansion joint and holes.

Features：

  • The filling precision of filling nozzles can be adjusted
  • The surface of machine is made of anti-corrosive
  • Anti-corrosive special valves, unique vacuum design to avoid leaking
  • Filling nozzles are made of anti-corrosive plastic
  • Safety design for no bottle, no filling, smooth and reliable working.
  • The machine is designed with high-speed mass flow isobar filling valve to ensure the high filling speed and precise liquid level without any loss.

Technical parameter：

Application valve

1inch（25.4mm）

Liquid filling volume (ml)

50~750

Liquid filling accuracy(%)

≤±1

Inflation volume (ml)

50~750

Inflation accuracy (%)

≤±1

Application can diameter (mm)

35~70

Application can height(mm)

70~330

Working pressure (Mpa)

0.5~1

Gas consumption (m3/min)

1

Product capacity (Can/hr)

1800~3600(It is according to finished product filling volume)
